National Item Identification Number
01-295-3023
012953023
5306-01-295-3023
5306012953023
National Stock Number
Item Name
BOLT,MACHINE
Federal Supply Class
5306
Description
An externally threaded fastener designed for insertion through holes in assembled parts and normally intended to be tightened or released by torquing a nut. The threaded and unthreaded portions are both of one nominal diameter of 0.190 inch (5 mm) or larger. The head is not designed to be held or driven with an inserted driver or by the thumb and fingers. A locking feature may be incorporated in the design of the head or threads. Head dimensions and sizes of threaded and unthreaded portions shall conform to internationally recognized fastener standards. For items having a grip length portion machined to a tolerance of 0.0015 inch (0.038 mm) or less, BOLT, SHEAR. See also SCREW, CAP, HEXAGON HEAD and SCREW, MACHINE.
Commercial and Government Entity Code (Supplier Data)
03038
07482
56878
16941
16941
07482
NSN (National Stock Number) 5306-01-295-3023, 5306012953023 NIIN (National Identification Number) 01-295-3023, 012953023
Part Numbers (Reference Numbers)
C5130686
LP35307-310
L34976P010
L34976P310

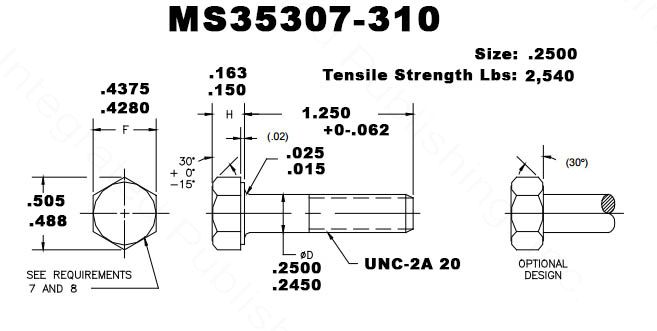

MS35307-310
T1227-P010
T1227-01
Required Categories
THREAD SERIES DESIGNATOR
NOMINAL THREAD DIAMETER
THREAD QUANTITY PER INCH
THR
Required Description
UNC
0.250 INCHES
20
2A
RIGHT-HAND
0.750 INCHES MINIMUM
1.188 INCHES MINIMU
