National Item Identification Number
01-444-3005
014443005
5306-01-444-3005
5306014443005
National Stock Number
Item Name
BOLT,MACHINE
Federal Supply Class
5306
Referenced on: http://generators.tpub.com//TM-9-2815-247-34P/css/TM-9-2815-247-34P_263.htm
Referenced on: http://generators.tpub.com//TM-9-2815-247-34P/css/TM-9-2815-247-34P_34.htmDescription
An externally threaded fastener designed for insertion through holes in assembled parts and normally intended to be tightened or released by torquing a nut. The threaded and unthreaded portions are both of one nominal diameter of 0.190 inch (5 mm) or larger. The head is not designed to be held or driven with an inserted driver or by the thumb and fingers. A locking feature may be incorporated in the design of the head or threads. Head dimensions and sizes of threaded and unthreaded portions shall conform to internationally recognized fastener standards. For items having a grip length portion machined to a tolerance of 0.0015 inch (0.038 mm) or less, BOLT, SHEAR. See also SCREW, CAP, HEXAGON HEAD and SCREW, MACHINE.
Commercial and Government Entity Code (Supplier Data)
0B6J5
PREMIER INDUSTRIAL CORP
TPC WIRE AND CABLE DIV
4500 EUCLID AVE
CLEVELAND
OH
44103
216-426-1513

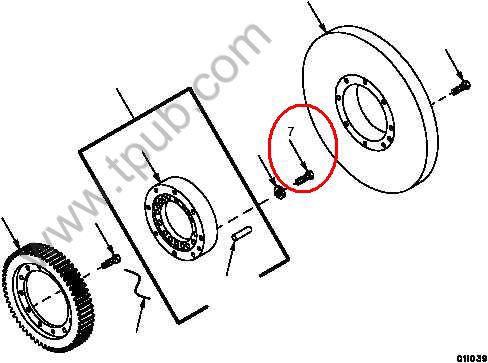

Image (It is your responsibility to verify the accuracy of these images)
Part Numbers (Reference Numbers)
41309
Required Categories
Required Description
